Portable Lithium Metal Polymer Battery , 3.7 V 400mah Lipo Battery For Medical Equipment 802030

Brand Name : HZM

Model Number : 802030

Certification : MSDS UN38.3 UL

Place of Origin : China

MOQ : 100 pieces

Price : $0.55/piece

Payment Terms : T/T, Western Union,PayPal,Credit card

Supply Ability : 100000 pieces/ week

Delivery Time : 2 work days

Packaging Details : 100 pieces/ box

Weight : 9g

Cycle life : >500 Times

Dimension : 8.0*20*30mm

Logo : Yes

Material : LiPo

Contact Now

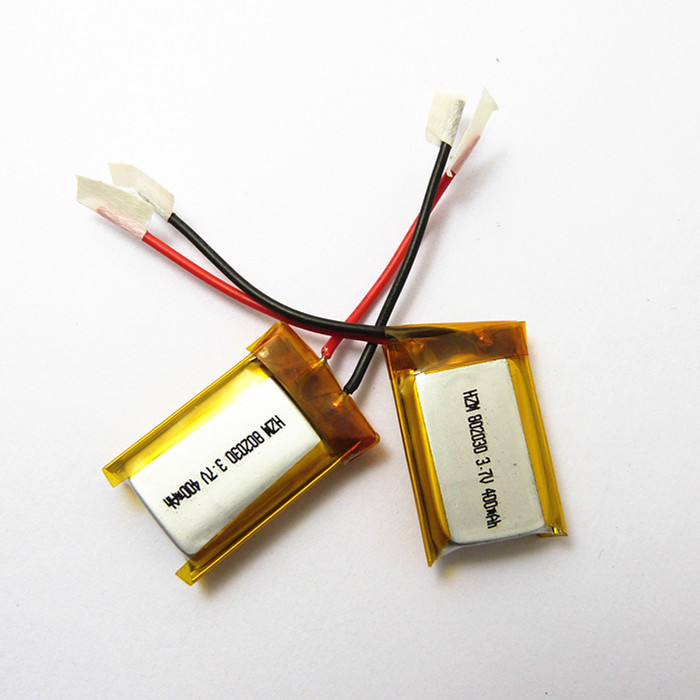

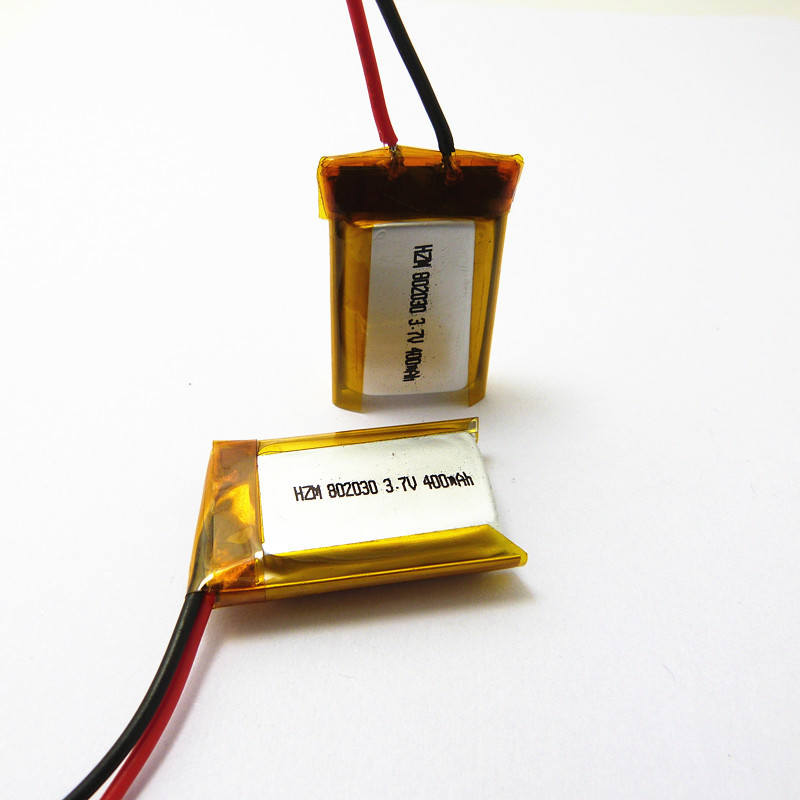

LiPo Battery 802030 400mah For Small Medical Equipment and Portable Equipment

Lithium ion polymer battery
Battery model: 802030 400mAh 3.7V
Material of Case Soft Al-film packing foil
Nominal Capacity: 400mAh
Nominal Voltage: 3.7V
Max Charge Current: 1.0C=400mA
Max Discharge Current: 1.5 C=600mA
Charge method CC/CV (constant current/constant voltage)
Size: 8.0*20*30mm
Weight: About 9g
Rechargeable battery with no less than 500 times cycle life

No.	Item	Specifications
1	Model	HZM802030
2	Size	8.02030mm (thicknesswidthlength)
3	Charge voltage	4.2V
4	Nominal voltage	3.7V
5	Nominal capacity	400mAh
6	Charge current	Standard Charging:0.5C Rapid charge:1.0C
7	Standard Charging method	0.5C(constant current)charge to 4.2V,then CV(constant voltage 4.2V)charge till charge current decline to≤0.05C
8	Charging time	Standard Charging:3.0hours(Ref.) Rapid charge:2hours(Ref.)
9	Max.charge current	1C
10	Max.discharge current	constant current1C ,transient peak current 2C
11	Discharge cut-off voltage	2.45V or 3.0V
12	Operating temperature	-20℃ to 60℃
13	Storage temperature	25℃

About Sample

Sample Leadtime: 24 hours for storck, 10-15 days for customized batteries.
Sample Fee: We charge you 150% of unit price.
Courier Cost: Not included

ABOUT MOQ

No MOQ requirement for our existant model. but MOQ 1000pcs for modified ones

About Leadtime

3~5 days for stock, 15 ~35 days for customized or modified batteriers
